Project 04 · Technical set

Working Drawings

04.

A residence documented properly — plan, plumbing, electrical, column and footing layout, front elevation and section X-X.

Type: Residence
Scale: 1:100
Sheets: 2

01 — The layout

The ground floor, documented properly.

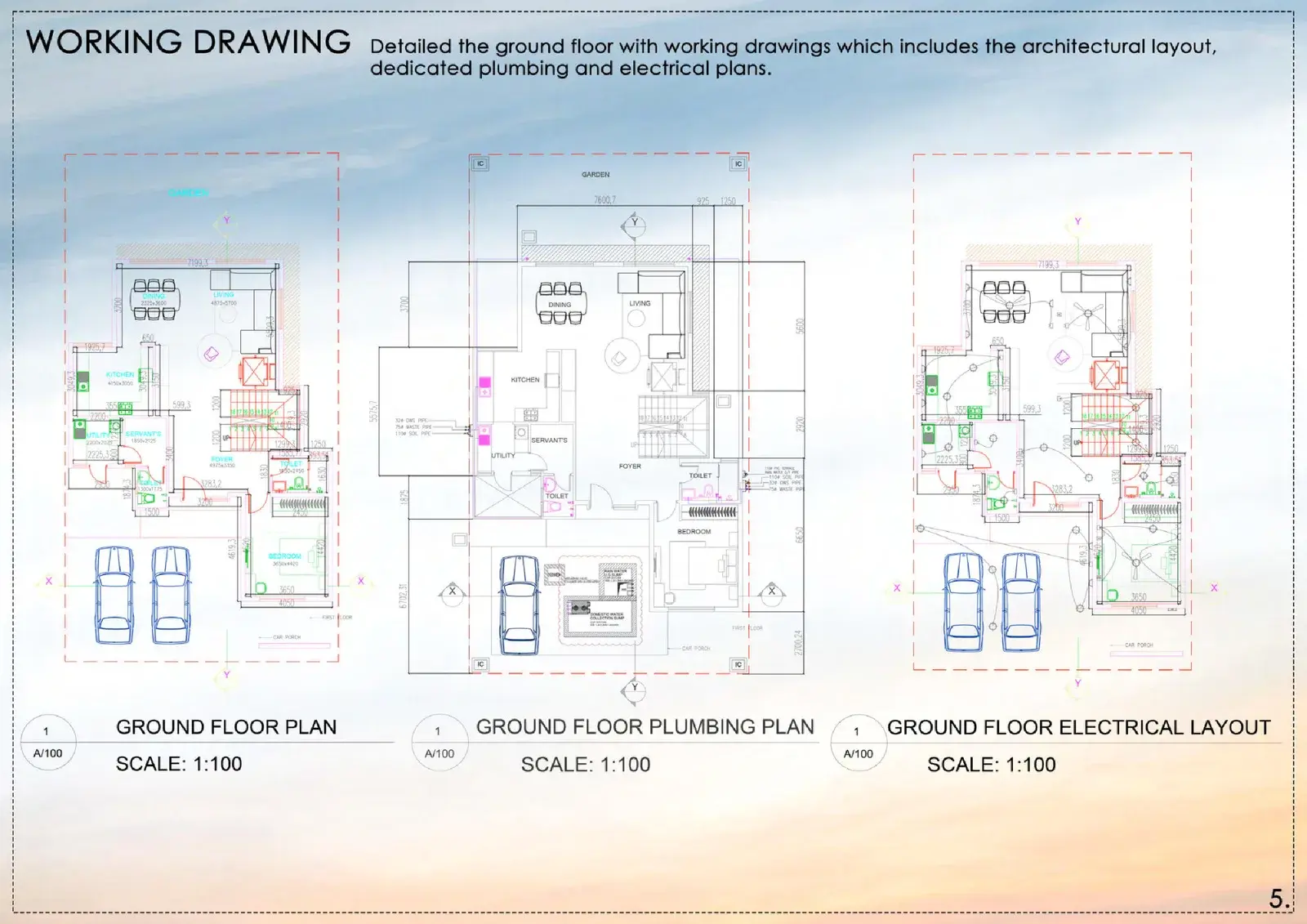

The architectural layout with dedicated plumbing and electrical plans, all at 1:100 — the drawings a builder actually works from, rather than the ones that photograph well.

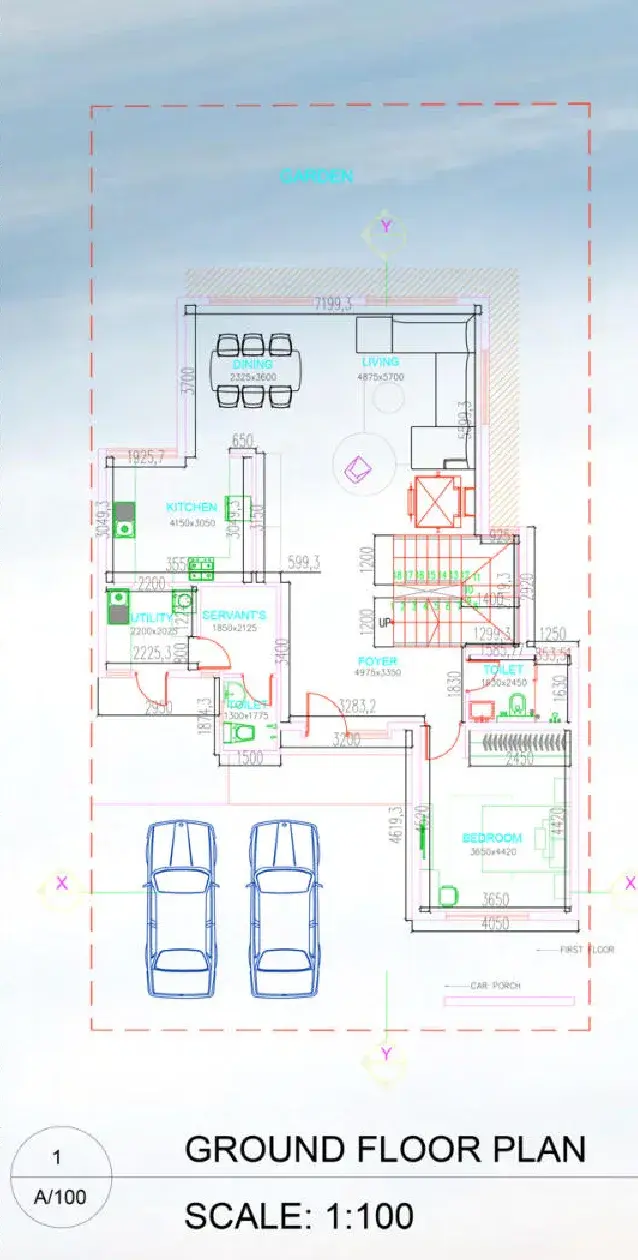

Ground floor architectural plan, rooms labelled and dimensioned, scale 1:100 — Fig. 01 — Architectural layout · after page 0008

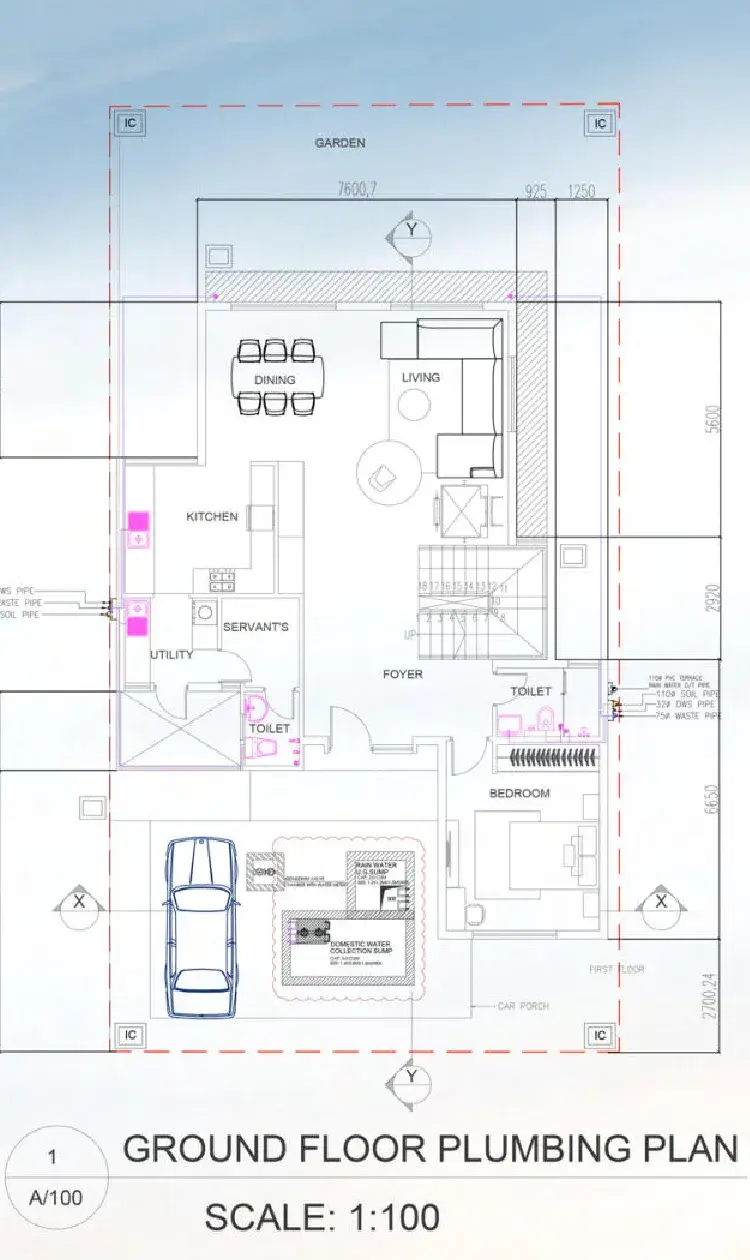

Ground floor plumbing plan — water, waste and soil runs with sumps, scale 1:100 — Fig. 02 — Plumbing plan · after page 0008

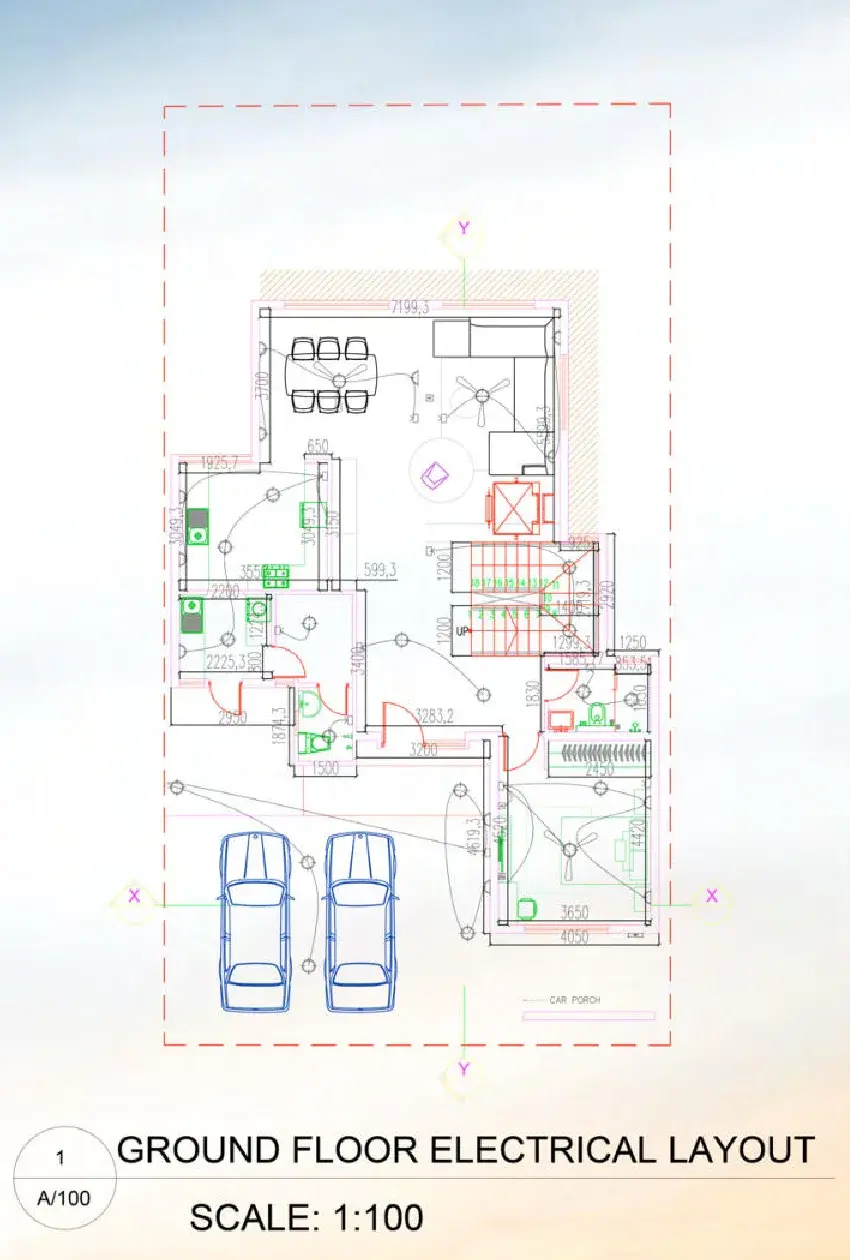

Ground floor electrical layout — switch, socket and fan wiring over the plan, scale 1:100 — Fig. 03 — Electrical layout · after page 0008

02 — The structure

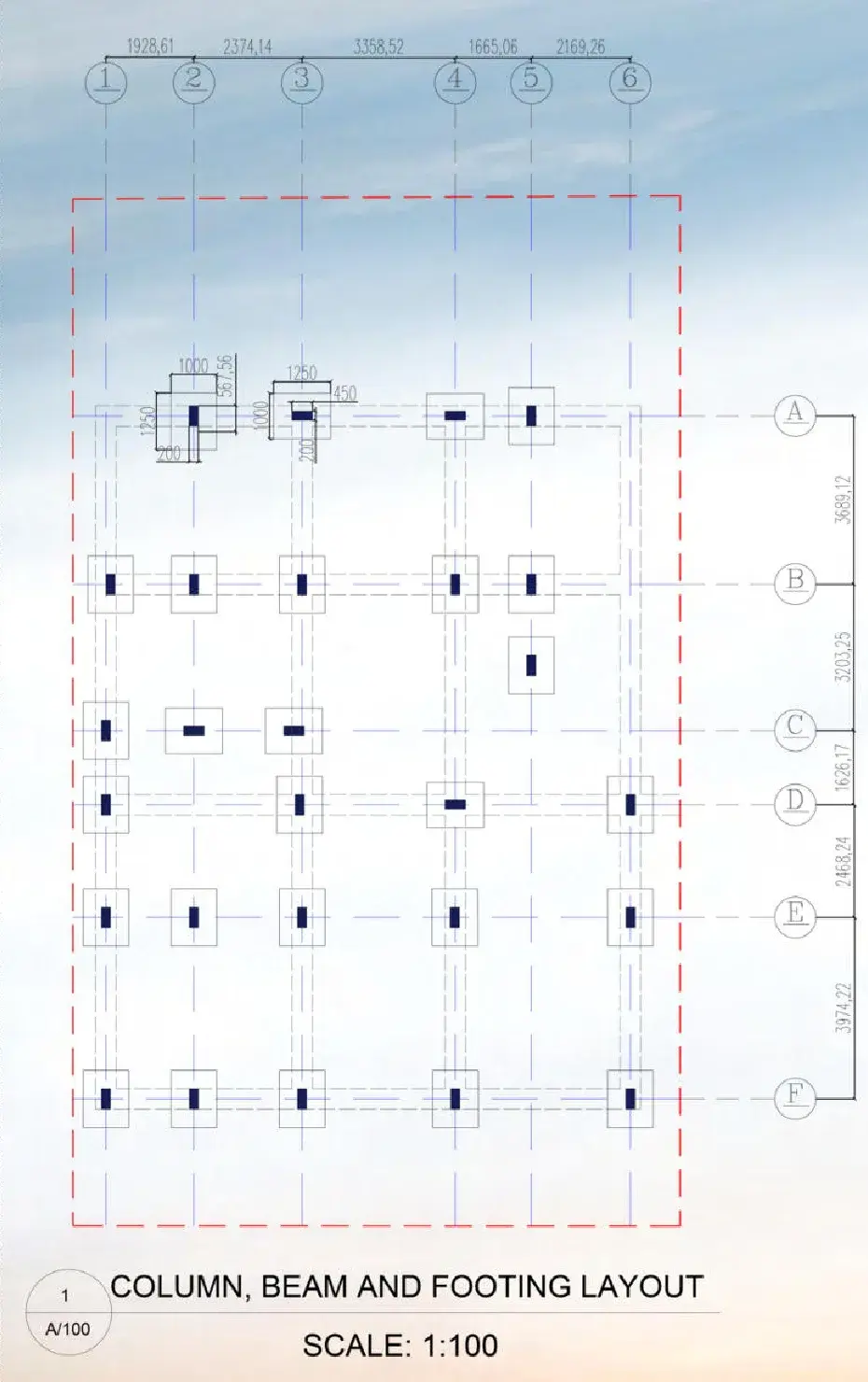

Column, beam and footing.

The structural layout set alongside the front elevation and section X-X, so the frame and the face are read together. The elevation carries five level markers — this is a four-storey house, ground to terrace, not the single floor the ground plan alone suggests.

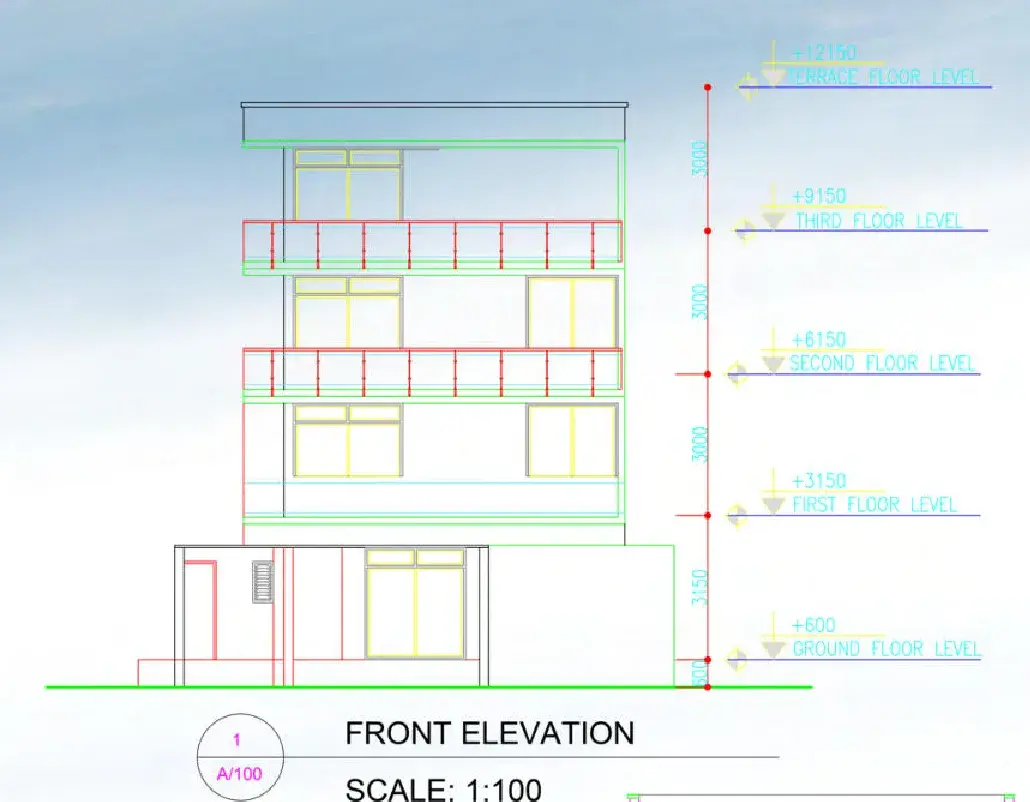

Front elevation of the four-storey residence, dimensioned ground to terrace level — Fig. 05 — Front elevation · after page 0009

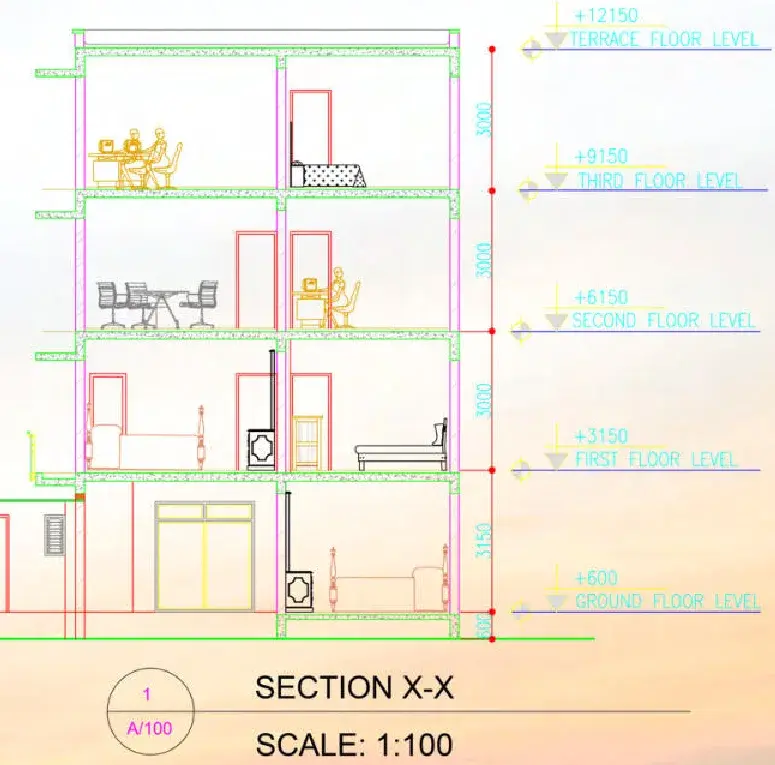

Section X-X through the residence, furnished rooms at every level — Fig. 06 — Section X-X · after page 0009

As submitted

Both pages, whole

Working Drawings — portfolio page 0009 as submitted — Page 0009
